• Compact Ultra High Purity Reverse Osmosis Undersink 3-Stage

Compact Ultra High Purity Under Sink Reverse Osmosis System – 3 Stage

  • Removes PFAS, Chlorine, Fluoride, Heavy Metals, Bacteria, Cysts
  • NSF certified and Watermark approved
  • Filters Made in USA
  • Handbuilt in Australia and Wet-Tested before sale
  • Easy Maintenance with quick-change cartridges for simple, hygienic maintenance
  • Including 5L storage tank, upgrades available
  • Including stylish “Retro High Loop” tap, upgrades available
  • 5 year warranty*



Our Compact Ultra High Purity Under Sink Reverse Osmosis System – 3 Stage provides the best in class RO water filtration.  Our RO systems are NSF certified and have the relevant Australian Watermark certificates for drinking water treatment which means you can be assured that these under sink RO filters are vetted against the most stringent standards.

Made from superior quality components with the filters all being manufactured in the USA, our 4 stage compact under sink RO systems quick change cartridges to ensure simple, hygienic, no mess means of system maintenance. This delivers excellent purified water while providing an effortless method to change your RO filters when required. Reverse Osmosis systems are consistently one of the better PFAS water filters and water filters that filters fluoride as well.

  • Carbon Carbon Pre-Filter (Made in USA) – Removes PFAS, chlorine, pesticides, heavy metals and other organic pollutants.
  • Ultrafine TFC RO Membrane 75GPD (Made in USA) – Screens to 0.0005 micron, filtering PFAS, viruses, bacteria and parasites.  Also removes Fluoride and Hydrocarbons.
  • Coconut Carbon Post-Filter (Made in USA) – The final polishing filter that delivers outstanding, clean, purified water.
  • RO System includes 5 litre storage to enable you to dispense your filtered water on demand.
  • The installation of this under sink RO system requires basic plumbing skills and drilling a hole in order to mount the filtered water tap.

Specifications

  • Max filter output of approximately 200 litres per day.
  • RO Filter system dimensions 300W x 180H x 170D mm.
  • 5 litre storage tank, dimensions 317W x 203D mm.
  • Micron rating: 0.0005 micron
  • 5 Year Warranty

Replacement filter details can be found here.

Replacement tank details can be found here.

Choose the tap for your under sink water filter

Retro with High Loop Spring Loaded Black Lever Chrome +$16.00 NOT IN STOCK - Metro with High Loop Chrome - on back order +$19.00 Antique with High Loop +$19.00 Fin with Long Reach +$24.00 Mode with high Loop +$36.00 NOT IN STOCK - Euro with High Loop - on back order +$56.00 Euro with Long Reach +$56.00 Side Lever High Loop Mixer Tap +$389.00 Sidelever 3 Way Chrome Mixer Tap +$319.00
Reverse Osmosis Tank 5 Litre Reverse Osmosis Tank 8 Litre +$77.00 Reverse Osmosis Tank 11 Litre +$88.00

$589.00 inc. GST

Description

Certified Under Sink Water Filtration

This system meets the WaterMark specification AS/NZS 3497:1998 Amdt 1 2001 Drinking water treatment unit – Plumbing requirements.
Certificate Number 52014.

WaterMark Certification
NSF Certification
Compact RO 3-Stage Under Sink Filtration Process
Compact RO 3 Stage Under Sink Installation Diagram

Choose Your Under Sink Water Filter Tap

All our under sink water filter taps feature a chrome finish and include a base plate and connection fittings.
* Please Note: the width (W) refers to the dimension from the centre line of the tap body to the centre of the spout.

Chrome Spring Loaded Faucet with Black Lever

Spring Loaded

Standard Spring Loaded faucet with black lever, in a long reach design.

200mm W x 210mm H

Chrome Mode Faucet with High Loop

Mode

Standard Mode faucet in a high loop design.

150mm W x 290mm H

Chrome Retro Faucet with High Loop and Long Reach

Retro

Standard Retro faucet in a high loop design and long reach.

125mm W x 235mm H

Chrome Euro Faucet with Long Reach

Euro with Long Reach

Standard Euro faucet in a long reach design.

150mm W x 230mm H

Chrome Euro Faucet with High Loop

Euro with High Loop

Standard Euro faucet in a high loop design.

150mm W x 230mm H

Chrome Metro Faucet with High Loop

Metro

Standard Metro faucet in a high loop design.

160mm W x 250mm H

Chrome Antique Faucet with High Loop

Antique

Standard Antique faucet in a high loop design.

125mm W x 235mm H

Chrome Fin Faucet with Long Reach

Fin

Standard Fin faucet in a long reach design.

135mm W x 250mm H

Side Lever High Loop Mixer IT003855

Side Lever High Loop 3-Way Mixer

Standard Side Lever in a high loop design. For hot, cold and filtered Water.

203mm W x 365mm H

Side Lever Mixer IT001169

Side Lever Long Reach 3-Way Mixer

Standard Side Lever in a long reach design. For hot, cold and filtered Water.

195mm W x 325mm H

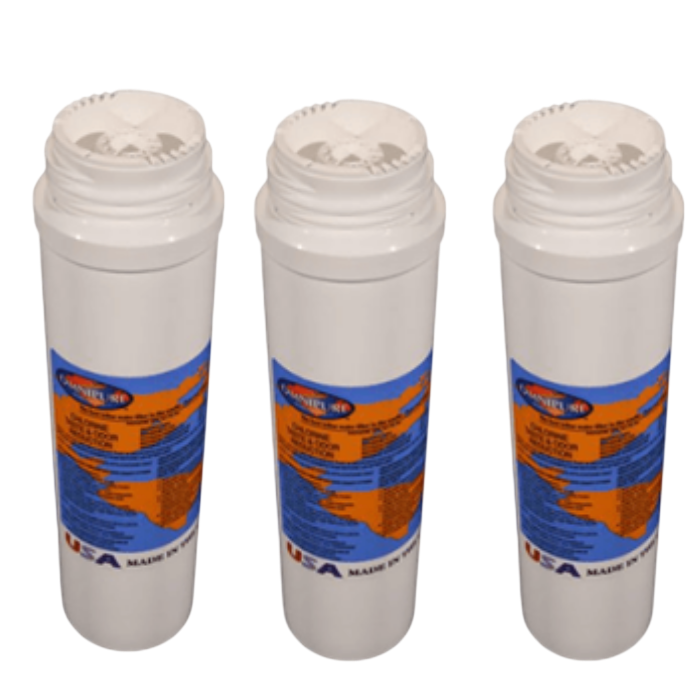

Replacement Filter Cartridges for Compact Ultra High Purity Under Sink Reverse Osmosis System with Alkaliser

1st & 3rd Stage Omnipure GAC 10" WL5540

The system requires 2 of these cartridges to be replaced
every 6-12 months dependent on water quality.

Omnipure Q Series GAC 10 WL5540 5 micron carbon filter replacement cartridge

2nd Stage Omnipure Reverse Osmosis Replacement Membrane WL5572

The system requires 1 these cartridges to be replaced
every 3-6 years dependent on water quality.

Omnipure Q Series RO Membrane filter replacement cartridge 10 Inch WL5572

Transform your tap water into refreshing, purified drinking water |for just a few cents a day

Tap water often harbors an array of impurities and contaminants. Reverse Osmosis Water Filters target the widest range of water impurities imaginable, including harmful substances like PFAS, fluoride and chlorine. Reverse osmosis is uniquely capable of reducing contaminants ranging from bacteria and viruses to agricultural runoff like pesticides and fertilisers to dissolved metals such as lead, arsenic, and iron. Research demonstrates that reverse osmosis technology excels at eliminating trace contaminants, including perfluorocarbons and trace pharmaceutical residues. Enjoy clean, contaminant-free water in your home with our Ultra High Purity Reverse Osmosis System, and have the peace of mind that comes with knowing your water is free from fluoride, chloride, and a wide array of other impurities.

The Advanced Filter Technology - 3 Stages of Filtration

Omnipure Q-Series-Q5640 GAC-Filter

Omnipure Sediment Pre Filter Block WL5540 (Stage 1 & 3)

Made from 100% pure Coconut Granular Activated Carbon (GAC) and rigorously tested, it effectively reduces PFAS, Chlorine, Chemicals, Pesticides, Heavy Metals, Taste & Odour. We recommend replacing every 12 months or 7,500L depending on water quality. Made in USA.Pes

Omnipure Q Series RO Membrane filter replacement cartridge 10 Inch WL5572

Reverse Osmosis Membrane WL5572 (Stage 2)

Effectively removes up to 99% of PFAS, fluoride, viruses, bacteria and parasites. The membrane screens to 0.0005 micron for pristine drinking water. Designed and made in the USA for maximum filtration, it requires replacement every 3-6 years to maintain optimal performance.

Reverse-Osmosis-Filter-Membrane

How does the Reverse Osmosis Membrane Work?

A reverse osmosis membrane is a thin film with tiny pores that permit only water molecules to pass through, blocking all contaminants. It’s made of a semi-permeable material that allows water flow but blocks dissolved salts, organics, bacteria, and pyrogens. When pressurised, pure water diffuses through the membrane into the permeate flow, leaving contaminants behind. Reverse osmosis removes up to 99% of impurities.
Polluted water is forced through the semi-permeable membrane by mains pressure. Pure water passes easily, while pollutants larger than.0005 microns are washed away into a waste stream that goes down the drain. This waste stream contains all of the filtered-out contaminants, including pesticides, metals, bacteria, and viruses.

Restore Nutrients to Purified Water with Remineralisation

Reverse osmosis effectively removes harmful contaminants like PFAS, cadmium, arsenic, and chromium. However, it also filters out beneficial minerals and salts, resulting in acidic water. For improved health outcomes, raise your water’s pH to an alkaline level by adding healthy minerals back into it. Our Remineraliser Cartridge is included in these systems and infuses your water with essential minerals and salts to restore balance and alkalinity:

Compact Ultra High Purity Under Sink Reverse Osmosis System with Alkaliser – 4 Stage

Ultra High Purity Under Sink Reverse Osmosis System with Alkaliser – 5 Stage

Certification

You can trust this reverse osmosis system to deliver safe, clean water. It meets the stringent WaterMark AS/NZS 3497 standards for structural durability under pressure, certified under number 52014. WaterMark also mandates that all components, including the filter cartridges, comply with NSF/ANSI 42 standards or higher for water filtration safety.
These systems are hand-assembled right here in Australia and wet-tested to guarantee superior quality. Our Watermark certification indicates full compliance with Australian plumbing codes, so you can have total peace of mind knowing your RO system adheres to local regulations.

Watermark-NSF



Important Considerations for Rainwater Filtration

This product is designed specifically for use with municipal water supply systems or well water with adequate pressure. It is not recommended for rainwater filtration due to the waste water component inherent in reverse osmosis systems.
Reverse osmosis water filters require a consistent water pressure of at least 40 psi, which is typically provided by municipal water mains or a dedicated pressure pump. Rainwater collection systems often lack the necessary pressure for the efficient operation of reverse osmosis filters.
For optimal performance and to avoid potential issues, we strongly advise against using this product for rainwater filtration. It is specifically engineered to work seamlessly with traditional water supply sources that meet the required pressure specifications.



Hassle-Free Installation

Installation of your reverse osmosis system is straightforward with the included guide and complete package of parts. All necessary fittings, tubing, and adapters are provided for a seamless setup.

For step-by-step guidance, refer to the installation manual you will receive with the kit. Additionally, check out our blog post here for tips. With the materials included and these resources, you’ll be able to get your new system up and running smoothly.

We want to ensure your installation experience is easy and stress-free. Please reach out to our support team with any questions!



Compact Ultra High Purity Reverse Osmosis Undersink 3-Stage

Everything in its Place: Hose Colour Guide

Our reverse osmosis systems come equipped with colour-coded hoses for intuitive installation.

– Black hose for waste water drainage
– White hose connects to the storage tank
– Red hose for feed water inlet to the system
– Blue hose for filtered water flow to dispensing tap after passing the remineraliser

With each hose distinctly coloured, you’ll know exactly where everything connects once you unpack your system. No guesswork is required!
The colour-coding allows for quick identification of the purpose and flow path of each flexible hose.
With the right hoses in the right places, you’ll be enjoying purified water in no time. Our systems come with everything needed for  efficient filtration and refreshing hydration.

Reverse Osmosis Storage Tank Dimensions

Reverse Osmosis Tank Dimensions

Additional information

Weight2 kg
Dimensions25 × 25 × 42 cm
