• Under Sink Reverse Osmosis System 4 Stage
  • Under Sink Reverse Osmosis System 4 Stage Component Diagram

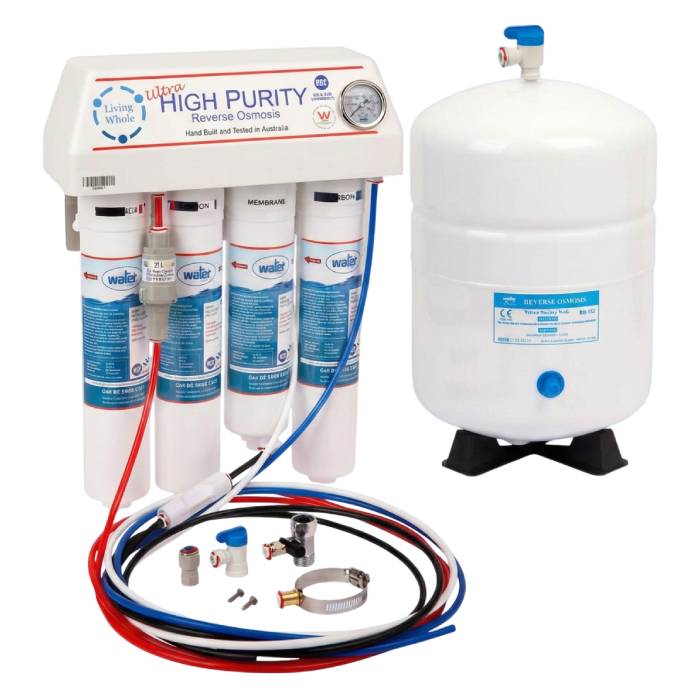

Under Sink Reverse Osmosis System – 4 Stage

  • Removes Chlorine, Fluoride, Heavy Metals, Bacteria, Cysts
  • NSF certified and Watermark approved
  • Filters Made in USA
  • Handbuilt in Sydney and Wet-Tested before sale
  • Easy Maintenance with hygienic twist-off cartridges
  • Including 5L storage tank (upgrades available)
  • Including stylish “Retro High Loop” tap, upgrades available
  • 5 year warranty

Our 4 stage under sink reverse osmosis system provide the best in class RO water filtration.  Our RO systems are NSF certified and have the relevant Australian Watermark certificates for drinking water treatment which means you can be assured that these under sink RO filters are tested against the most stringent standards.

Our 4 stage under sink RO systems are made from very high quality components and the filters are all manufactured in the USA.  These under sink reverse osmosis systems include quick change cartridges, delivering excellent purified water and an effortless method to change your RO filters when required.  If you’re looking for an outstanding and reliable fluoride filter it’s hard to beat these RO systems.

  • Sediment Pre-Filter (Made in USA) – Mechanical filtration removes fine sediment particles.
  • Carbon Pre-Filter (Made in USA) – Removes chlorine, pesticides, heavy metals and other organic pollutants.
  • Ultrafine TFC RO Membrane (Made in USA) – Screens to 0.0005 micron, filtering viruses, bacteria and parasites.  Also removes Fluoride and Hydrocarbons.
  • Coconut Carbon Post-Filter (Made in USA)– The final polishing filter that delivers outstanding, clean, purified water.
  • RO System includes 5 litre storage to enable you to dispense your filtered water on demand.
  • This installation of this under sink RO system requires basic plumbing skills and drilling a hole in order to mount of the filtered water tap.

Specifications

  • Maximum flow rate of 3 litres per minute.
  • Max filter output of approximately 200 litres per day (@60psi 25ºC).
  • Micron Rating: 0.0005 micron
  • RO Filter system dimensions 320W x 420H x 110D mm.
  • 5 litre tank Dimensions 317W x 203D mm (upgrades available).
  • 5 year warranty.

The 4-stage undersink reverse osmosis system removes contaminants and beneficial minerals from water, leaving it demineralised. For remineralised water with essential minerals like calcium and magnesium, consider the Under Sink Reverse Osmosis System with Alkalisation- 5 Stage, which adds a remineralisation cartridge after the reverse osmosis filtration. This provides clean, great-tasting water while retaining healthy minerals.

NSF Watermark certified
NSF Watermark certified



Replacement filter details can be found here.

Replacement tank details can be found here.

Choose the tap for your under sink water filter

Retro with High Loop $0.00 Spring Loaded Black Lever Chrome +$12.00 Metro with High Loop Chrome +$15.00 Antique with High Loop +$15.00 Fin with Long Reach +$20.00 Mode with high Loop +$30.00 Euro with High Loop +$50.00 Euro with Long Reach +$50.00
Reverse Osmosis Tank 5 Litre $0.00 Reverse Osmosis Tank 8 Litre +$77.00 Reverse Osmosis Tank 11 Litre +$88.00

$690.00 inc. GST

Description

Under Sink Reverse Osmosis Water Filter 4 Stage Component Diagram

4 Stage Under Sink RO Filter Components

  • 1 – Sediment Pre-Filter (Made in USA)
  • 2 – Carbon Pre-Filter (Made in USA)
  • 3 – RO Membrane (Made in USA)
  • 4 – Carbon Post-Filter (Made in USA)
  • A – Feed Water Valve
  • B – Stem Elbow
  • C – Inline Flow Restrictor
  • D – Storage Tank Tap
  • E -Pure Water Storage Tank
  • E -Pure Water Faucet

Certified Countertop Water Filtration

This system meets the WaterMark specification AS/NZS 3497:1998 Amdt 1 2001 Drinking water treatment unit – Plumbing requirements.
Certificate Number 23124.

WaterMark Certification
NSF Certification

Replacement Filter Cartridges for
4 Stage Under Sink Reverse Osmosis System

1st Stage Omnipure Sediment Pre Filter Block

The system requires 1 of these cartridges to be replaced every 6-12 months.

2nd & 4th Stage Omnipure GAC Carbon Filter

The system requires 2 of these cartridges to be replaced every 12 months.

3rd Stage Omnipure Reverse Osmosis Replacement Membrane

The system requires 1 these cartridges to be replaced every 3-6 years dependent on water quality.

Transform your tap water into refreshing, purified drinking water for just a few cents a day

Tap water often harbors an array of impurities and contaminants. Reverse Osmosis Water Filters target the widest range of water impurities imaginable, including harmful substances like fluoride and chloride. Reverse osmosis is uniquely capable of reducing contaminants ranging from bacteria and viruses to agricultural runoff like pesticides and fertilizers to dissolved metals such as lead, arsenic, and iron. Research demonstrates that reverse osmosis technology excels at eliminating trace contaminants, including perfluorocarbons and trace pharmaceutical residues. Enjoy clean, contaminant-free water in your home with our Ultra High Purity Reverse Osmosis System, and have the peace of mind that comes with knowing your water is free from fluoride, chloride, and a wide array of other impurities.

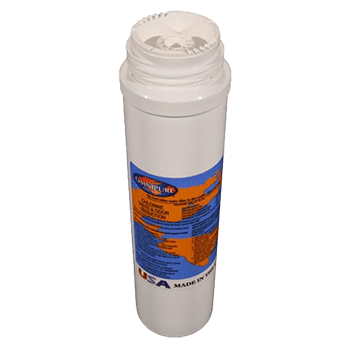

Omnipure Q5605 Sediment Replacement Filter Cartridge

Omnipure Sediment Pre Filter Block WL5605 (Stage 1)

Removes particulate matter such as sediment, rust, dirt, cloudiness from the water. Made in USA. Filter needs replacing every 6-12 months.



Omnipure Q-Series-Q5640 GAC-Filter

Omnipure GAC Carbon Filter WL5640 (Stage 2&4)

Made from 100% pure Coconut Granular Activated Carbon (GAC) and rigorously tested, it effectively reduces Chlorine, Chemicals, Taste & Odour. We recommend replacing every 12 months or 7,500L depending on water quality. Made in USA.



Omnipure Q Series RO Membrane filter replacement cartridge 10 Inch WL5572

3rd Stage Omnipure Reverse Osmosis Replacement Membrane WL5572

Effectively removes up to 99% of fluoride, viruses, bacteria and parasites. The membrane screens to 0.0005 micron for pristine drinking water. Designed and made in the USA for maximum filtration, it requires replacement every 3-6 years to maintain optimal performance.


Reverse-Osmosis-Filter-Membrane

How does the Reverse Osmosis Membrane Work?

A reverse osmosis membrane is a thin film with tiny pores that permit only water molecules to pass through, blocking all contaminants. It’s made of a semi-permeable material that allows water flow but blocks dissolved salts, organics, bacteria, and pyrogens. When pressurised, pure water diffuses through the membrane into the permeate flow, leaving contaminants behind. Reverse osmosis removes up to 99% of impurities.
Polluted water is forced through the semi-permeable membrane by mains pressure. Pure water passes easily, while pollutants larger than.0005 microns are washed away into a waste stream that goes down the drain. This waste stream contains all of the filtered-out contaminants, including pesticides, metals, bacteria, and viruses.









Reverse Osmosis and Nutrients

Reverse osmosis effectively removes harmful contaminants like cadmium, arsenic, and chromium. However, it also filters out beneficial minerals and salts, resulting in acidic water. For improved health outcomes, raise your water’s pH to an alkaline level by adding healthy minerals back into it. See our 5-Stage Under Sink Reverse Osmosis System that comes with a remineraliser/alkaliser or aussietraceminerals.com if you prefer to add minerals into your water just before drinking.



Certification

You can trust this reverse osmosis system to deliver safe, clean water. It meets the stringent WaterMark AS/NZS 3497 standards for structural durability under pressure, certified under number 23124. WaterMark also mandates that all components, including the filter cartridges, comply with NSF/ANSI 42 standards or higher for water filtration safety.
These systems are hand-assembled right here in Australia and wet-tested to guarantee superior quality. Our Watermark certification indicates full compliance with Australian plumbing codes, so you can have total peace of mind knowing your RO system adheres to local regulations.

Watermark-NSF

Important Considerations for Rainwater Filtration

This product is designed specifically for use with municipal water supply systems or well water with adequate pressure. It is not recommended for rainwater filtration due to the waste water component inherent in reverse osmosis systems.
Reverse osmosis water filters require a consistent water pressure of at least 40 psi, which is typically provided by municipal water mains or a dedicated pressure pump. Rainwater collection systems often lack the necessary pressure for the efficient operation of reverse osmosis filters.
For optimal performance and to avoid potential issues, we strongly advise against using this product for rainwater filtration. It is specifically engineered to work seamlessly with traditional water supply sources that meet the required pressure specifications.





Hassle-Free Installation

Installation of your reverse osmosis system is straightforward with the included guide and complete package of parts. All necessary fittings, tubing, and adapters are provided for a seamless setup.

For step-by-step guidance, refer to the installation manual you will receive with the kit. Additionally, check out our blog post here for tips. With the materials included and these resources, you’ll be able to get your new system up and running smoothly.

We want to ensure your installation experience is easy and stress-free. Please reach out to our support team with any questions!





Kit Inclusions

The plumbing kit includes all parts required for installation:

  • Black Tubing 1/4″
  • Red Tubing 1/4″
  • White Tubing 3/8″
  • Blue Tubing 3/8″
  • 1/2″F x 1/2″M x 1/4″T Plumbing connector Easy Fit
  • Drain clamp connect
  • JG Tank Tap Shut Off Valve 3/8″ Tube x 1/4″ Female NPT
  • JG Tap Adaptor 3/8″ Tube x 7/16″ UNS
  • Screws Stainless Standard 10″ Housings 10G 5/8
  • 1x stainless steel tank (5L)
  • 1x faucet Retro with High Loop


Under Sink Reverse Osmosis Water Filter

Everything in its Place: Hose Colour Guide

Our reverse osmosis systems come equipped with colour-coded hoses for intuitive installation.

– Black hose for waste water drainage
– White hose connects to the storage tank
– Red hose for feed water inlet to the system
– Blue hose for filtered water flow to dispensing tap

With each hose distinctly coloured, you’ll know exactly where everything connects once you unpack your system. No guesswork is required!
The colour-coding allows for quick identification of the purpose and flow path of each flexible hose.
With the right hoses in the right places, you’ll be enjoying purified water in no time. Our systems come with everything needed for  efficient filtration and refreshing hydration.

Additional information

Weight2 kg
Dimensions25 × 25 × 42 cm
